N皇后问题暴力解和回溯解问题分析和算法实现-leetcode困难难度

2019/10/3 posted in  leetcode

n皇后问题是经典的回溯解题的案例,回溯一般用在有多个解的算法中,回溯的核心是穷举,一般通过必要的减枝提高效率(减少重复计算等),得到一个解后,把当前解进行保存,然后将当前解标记为未解决,继续尝试下一个可能满足条件的解,即回溯

穷举解有利于理解问题的本质,回溯解提高解题效率

题目参考:https://leetcode-cn.com/problems/n-queens/

可以看到n皇后是leetcode上一道难度为困难的题

基本事实

  1. 皇后的个数和行数相等
  2. 每行必定有且只有一个皇后, 如果用row1, row2表示两个皇后所处的行,必定存在row1 != row2
  3. 两个皇后必定存在不在同一条斜线上, [row1, col1], [row2, col2],

    必定存在 | row1 - row2 | != | col1 -col2 |

    或者 左右对角线分开判断
    左对角线
    row1 - col1 == row2 - col2
    右对角线
    row1 + col1 = row2 + col2

  4. 两个皇后必定不在同一列上,必定存在col1 != col2

  5. 要找到所有皇后的集合,必定在找到满足的一个皇后后,不能停,需要继续查找下一个皇后

满足以上条件,即可求得n皇后的解

回溯解

#include <iostream>
#include <vector>
#include <cmath>

using namespace std;

#define QUEUE_NUM 8

int usedRowAndCol[QUEUE_NUM + 1] = {0}; // 已经使用的行和列, 0表示未使用,有值表示列值, 键是行 值是列

vector< vector<string> > result; // 存储n皇后所有可能结果

void findAQueue(int);
void recordAnswer();
void printAnswer();

void findAQueue(int row)
{
    // row这行肯定是可以用的,主要是获取可用的列,列也有8列,所以进行穷举, 判断row行的col列是否可用
    for (int col = 1; col <= QUEUE_NUM; col ++) {
        // 检查列是否可用 1. 两个皇后必定不在同一列上,必定存在col1 != col2
        // 2. 两个皇后必定存在不在同一条斜线上, [row1, col1], [row2, col2],必定存在 | row1 - col1 | != | row2 -col2 |
        // 判断当前行的,当前col列在不在对角线上已经占用了
        bool canPlaceInThisCol = true;
        for (int currentRow = 1; currentRow < row; currentRow ++) {
            // currentRow行的col列用过了
            if (usedRowAndCol[currentRow] == col) {
                canPlaceInThisCol = false;
                break;
            }

            // 左对角线有用过了
            if (currentRow - usedRowAndCol[currentRow] == row - col) {
                canPlaceInThisCol = false;
                break;
            }
            // 右对角线是否用过了
            if (currentRow + usedRowAndCol[currentRow] == row + col) {
                canPlaceInThisCol = false;
                break;
            }
        }
        if (canPlaceInThisCol) {
            // 列可用,进行记录
            usedRowAndCol[row] = col;
            // 找下一行的那列可以使用
            if (row < QUEUE_NUM) {
                findAQueue(row + 1);
            }
            if (row == QUEUE_NUM) { // 如果当前是最后一行了,就不用再继续找了,记录答案
                recordAnswer();
            }
        }
    }
}

void recordAnswer()
{
    vector<string> oneResult;
    for (int i = 1; i <= QUEUE_NUM; i ++) {
        string row(QUEUE_NUM, '.');
        row[usedRowAndCol[i] - 1] = 'Q';

        oneResult.push_back(row);
    }
    result.push_back(oneResult);
}

void printAnswer()
{
    for (int i = 0; i < result.size(); i ++) {
        for (int j = 0; j < result[i].size(); j ++) {
            cout << result[i][j] << endl;
        }
        cout << "---------sep----------" << endl;
    }
}

int main(int argc, char *argv[])
{
    findAQueue(1);
    cout << result.size() << endl;
}

这里为了提高代码的可读性,使用了分别排除左对角线和右对角线的方法排除皇后,也可以直接使用绝对值方法

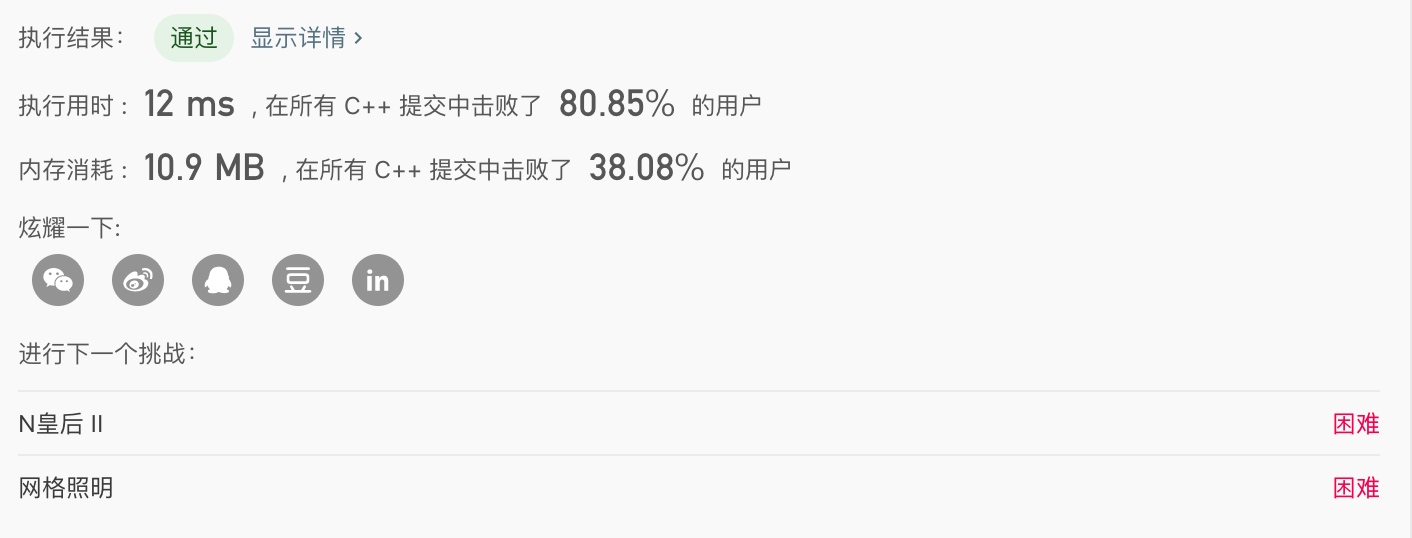

把代码稍作修改填到leetcode上即可

暴力解

排列出所有的组合,挨个判断每个组合是否满足n皇后的条件

#include <iostream>
#include <vector>

using namespace std;

#define QUEUE_NUM 4

int QUEUE_LIST[QUEUE_NUM];

vector< vector<string> > result; // 存储n皇后所有可能结果

bool is_ok(int row)
{
    if (row == QUEUE_NUM - 1) {
        return true;
    }

    int first = QUEUE_LIST[row];
    bool ok = true;

    for (int currentRow = row + 1; currentRow < QUEUE_NUM; currentRow ++) {
        // 不能在同一列
        if (QUEUE_LIST[currentRow] == first) {
            ok = false;
            break;
        }
        // 左对角线有用过了
        if (currentRow - QUEUE_LIST[currentRow] == row - first) {
            ok = false;
            break;
        }
        // 右对角线是否用过了
        if (currentRow + QUEUE_LIST[currentRow] == row + first) {
            ok = false;
            break;
        }
    }

    // 检查 row + 1行和 row + 2 -> QUEUE_NUM行是否满足条件
    if (ok) {
        ok = is_ok(row + 1);
    }

    return ok;
}

void recordAnswer()
{
    vector<string> oneResult;
    for (int i = 0; i < QUEUE_NUM; i ++) {
        string row(QUEUE_NUM, '.');
        row[QUEUE_LIST[i]] = 'Q';

        oneResult.push_back(row);
    }
    result.push_back(oneResult);
}

void printAnswer()
{
    for (int i = 0; i < result.size(); i ++) {
        for (int j = 0; j < result[i].size(); j ++) {
            cout << result[i][j] << endl;
        }
        cout << "---------sep----------" << endl;
    }
}

void queue(int row)
{
    for (int i = 0; i < QUEUE_NUM; i ++) {
        QUEUE_LIST[row] = i;
        if (row == QUEUE_NUM - 1) {
            // 找到一个组合,进行判断是否满足8皇后定义
            if (is_ok(0)) {
                // 进行记录
                recordAnswer();
            }
            continue;
        }
        queue(row + 1);
    }
}

int main(int argc, char *argv[]) {
    queue(0);
    printAnswer();
}

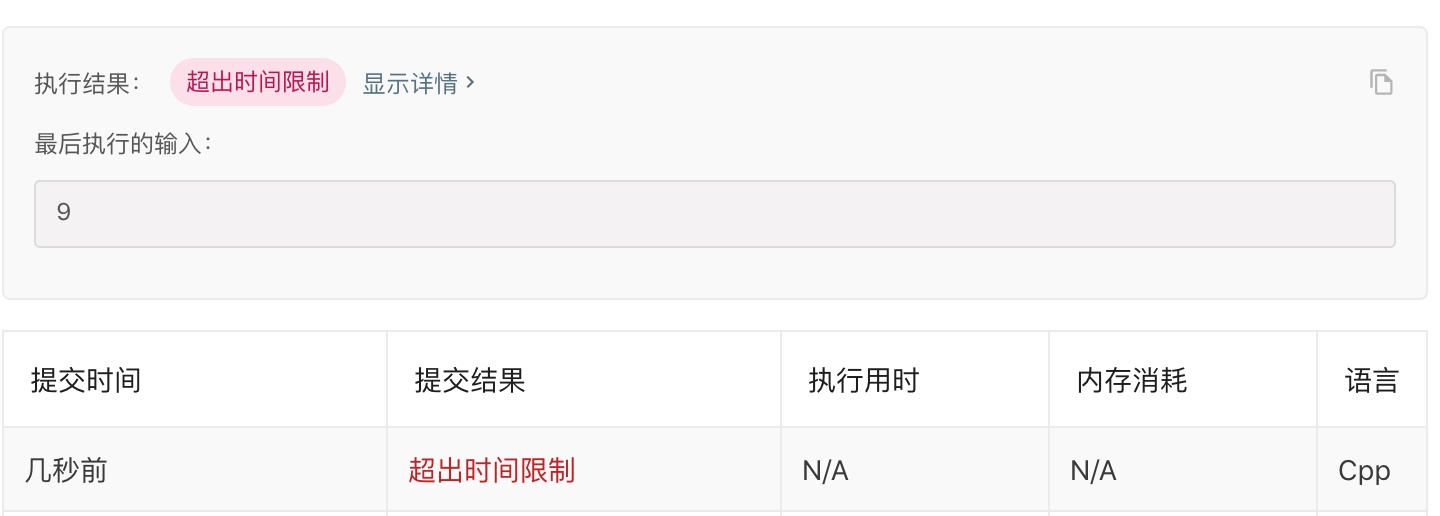

由于穷举解多出了很多无效的组合,lc上直接超时了...,可以在本地计算机上自行验证

一些注意的点

暴力解是先求出所有的皇后的组合,然后逐个判断皇后是否满足位置条件

回溯解就是在求皇后组合是否满足条件时,提前进行判断,提前剪掉了这部分皇后的组合

回溯法的col, row值从1开始是为了避免usedRowAndCol默认值的0和col, row索引的0冲突,导致的判断异常

参考资料

  1. http://www.cplusplus.com/reference/cmath/abs/
  2. https://zh.wikipedia.org/wiki/%E5%85%AB%E7%9A%87%E5%90%8E%E9%97%AE%E9%A2%98
  3. http://www.cplusplus.com/reference/cstring/memset/
